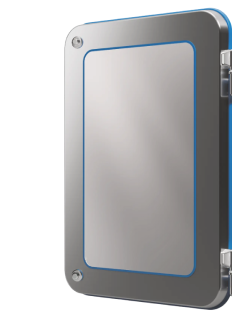

HWP Serie

Technical Data

Drawing

Certifications

Accessories

Standard Specification

  • Hinged door by external hinges certified by the EHEDG
  • In Stainless Steel Aisi304 (EN 1.4301) Scotch-Brite finishing
  • Lexan door mounted on external hinges patented and certified EHEDG, with its perimeter edge inclined of 10°
  • Hygienic design locking system certified EHEDG.a
  • Silicon blue gasket following the FDA requirements, between stainless steel and Lexan, to guarantee the hygiene..
  • Silicon blue gasket following the FDA requirements.
  • 3A certified

On Request Heading

  • In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.
  • Design with safety glass 3+3
Request Documentation and Quotations

Standard Certification

Product Drawing

×

Technical Data

Art.Dimensions (mm)Lexan Dimensions (mm)
CodeLHWL2H2
HWP 4445045060292292
HWP 4645060060292442
HWP 5550050060342342
HWP 5750070060342542
HWP 6660060060442442
HWP 7570050060542342
HWP 7770070060542542
HWP 8880080060642642
