Control Positioning for Dynamic Production Environments
Hanging systems solve accessibility challenges in pharmaceutical clean rooms, food processing lines, and chemical batch operations where operators need controls at varying heights and distances. Articulated arms with swivel joints allow repositioning during production runs while maintaining UL/NEMA compliance.
Wall-mounted brackets anchor tube assemblies in 48.5mm or 60.3mm diameters, with custom arm lengths extending operator reach without permanent floor or machine mounting. Fixed and swivel joint options create configurations ranging from simple L-brackets to complex multi-axis positioning systems.
Explore Our Complete Hanging System Series
Six specialized product lines combine to deliver flexible suspended control solutions, from commander enclosures to articulated arms, precision joints, and mounting hardware, all engineered for industrial environments requiring IP66 protection and UL compliance.
Proven Performance Across Critical Industries
EIQ-manufactured hanging systems, provided by IS Solutions, deliver suspended control solutions across industries where operator safety, hygiene standards, and environmental compliance are non-negotiable.
Engineered for Excellence, Trusted by Global Industry Leaders in Demanding Sectors
Industry leaders choose these hanging systems for applications demanding certified compliance, with installations spanning food processing, pharmaceutical manufacturing, chemical plants, and energy facilities worldwide.
Reliability Guaranteed Through Certified Connection Solutions
Validated through high-level global certifications that safeguard against dust, moisture, impact, and environmental stress, providing uninterrupted reliability for every critical connection in your operation.
IP (Ingress Protection) Rating
ISO 9001: Quality Management
ATEX Certification
IK (Impact Protection) Code
UL Certification (Nema 4X, 4, 1, 12)
Common Questions About Hanging Systems
Get answers on specifications, customization options, and compliance requirements.
AISI 304 EN 1.4301 offers excellent corrosion resistance for general industrial applications with Scotch-Brite finish. AISI 316L EN 1.4404 provides superior resistance to aggressive chemicals and chloride-rich environments, making it ideal for chemical processing facilities and coastal installations. Both materials maintain structural integrity under washdown conditions and meet food-grade requirements.
The 48 mm diameter tube arms handle lighter applications and compact installations, while 60 mm diameter tubes support heavy-duty applications with enclosures weighing up to 100kg. Load capacity depends on arm length, joint configuration, and wall bracket specifications. Contact technical support for specific configuration requirements based on your enclosure weight and reach distance.
Commander enclosures and system components achieve an IP66 protection rating, providing complete dust sealing and protection against powerful water jets from any direction. This makes them suitable for high-pressure washdown environments in food processing and pharmaceutical facilities. Systems also meet UL/NEMA 4x, 4, 1, 12 standards for North American installations.

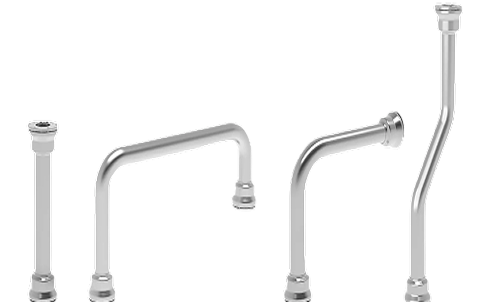

Yes, custom configurations are available beyond catalog specifications. The BG Series swiveling arms come in I, J, L, and S shapes, and can be manufactured to custom lengths to match specific reach requirements. Custom drilling patterns, welding configurations, and joint arrangements can be engineered to meet unique installation needs, provide your dimensional requirements, and operational constraints for technical review.

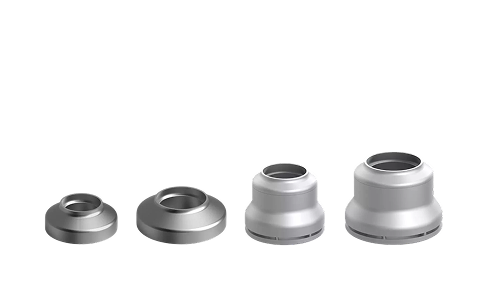

GS swiveling joints provide 360-degree rotation, allowing operators to reposition enclosures during production without electrical disconnection, ideal for dynamic production environments requiring frequent control repositioning. GF fixed joints lock arms at specific angles for permanent positioning, where the control location remains constant. Many installations use a combination: fixed joints near the wall mounting for stability, swivel joints near the enclosure for operator adjustment.
Hanging systems meet multiple international certifications: IP66 for ingress protection, ISO 9001 for quality management certified by RINA, UL certification with NEMA 4x ratings (File E474134), and ATEX certification available for explosive atmospheres. Stainless steel construction complies with FDA requirements for food contact surfaces, and components can be validated for GMP pharmaceutical environments.

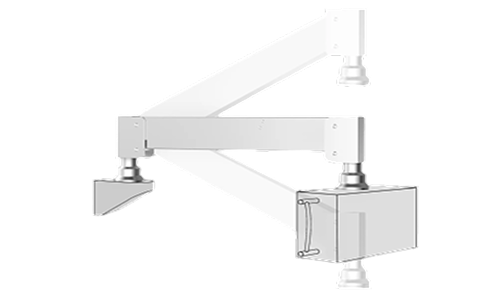

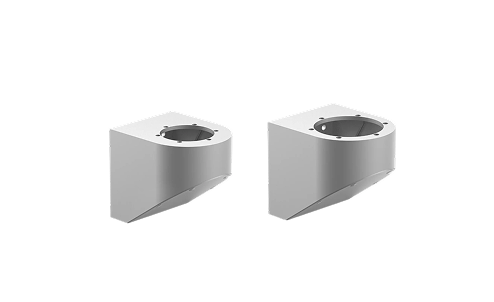

Components connect through standardized interfaces, enabling field assembly without welding or specialized tools. Wall brackets (SBG Series) anchor to walls, supporting fixed or swivel joints that connect to tube arms, which then mount commander enclosures. The BK Series height-adjustable arms provide manual vertical positioning through compression fitting mechanisms. Complete installation guidance and mounting hardware specifications are provided with orders.

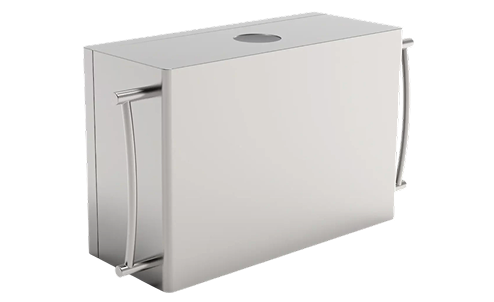

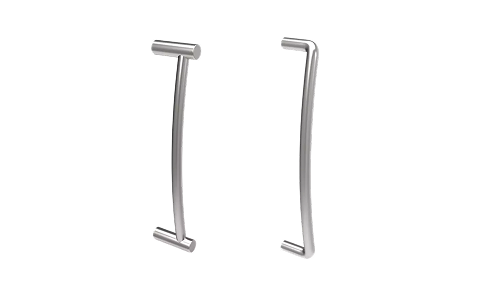

EQP Series commander enclosures are available with rear-hinged doors opening 135 degrees, in dimensions from 350x300mm to 550x500mm. Custom drilling patterns, cable entry configurations, and internal mounting plate specifications can be provided according to your electrical component requirements. Side-mounted handles come standard for operator repositioning. Specify your control layout, cable entry locations, and component mounting needs for custom engineering review.
