WPH Serie

Window covers with frame

In Stainless steel AISI 304 (EN 1.4301), Scotch-Brite finishing.
Lexan door, with stailess steel frame 1.2 – 1.5mm thick (depending on the dimensions), Scotch-Brite finishing.
Stainless steel internal hinges, allowing the opening up to 135°.
Bi-component polyurethane foam gasket
Frame made with a boxed profile

Request Documentation and Quotations

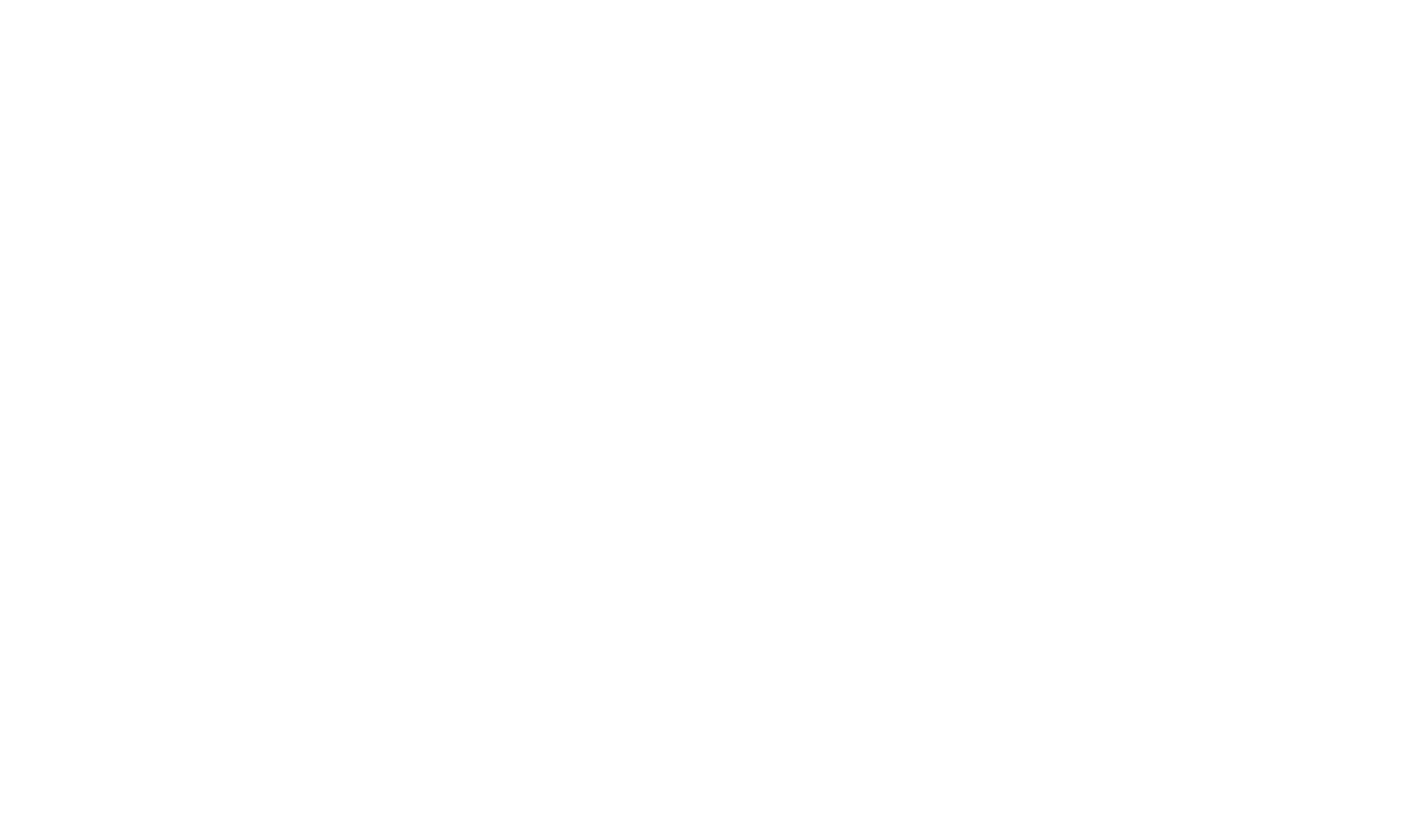

Version with double bit insert lock	Version with locking wing knob	Window size (mm)			Lexan clearance (mm)		Distance between window fixation holes (mm)
Code		L	H	P	L	H	A	B
WPH 33 B	WPH 33 F	300	300	60	190	190	200	200
WPH 44 B	WPH 44 F	450	450	60	340	340	175	175
WPH 46 B	WPH 46 F	450	600	60	340	490	175	166
WPH 55 B	WPH 55 F	500	500	60	390	390	200	200
WPH 57 B	WPH 57 F	500	700	60	390	590	200	200
WPH 66 B	WPH 66 F	600	600	60	490	490	166	166
WPH 75 B	WPH 75 F	700	500	60	590	390	200	200
WPH 77 B	WPH 77 F	700	700	60	590	590	200	200
WPH 88 B	WPH 88 F	800	800	60	690	690	175	175
