ZM Serie

Technical Data

Drawing

Certifications

Accessories

ZM Serie

Modular plinth

Standard Specifications

In Stainless steel AISI 304 (EN 1.4301), Scotch-Brite finishing
Realized with 4 highly-resistant corner piece to bolt to the MC frame
Made with inspection panels on all the 4 sides
Prepared for installing high-adjustable feet

On Request Heading

In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.
Base plinth to be ordered separetly

Request Documentation and Quotations

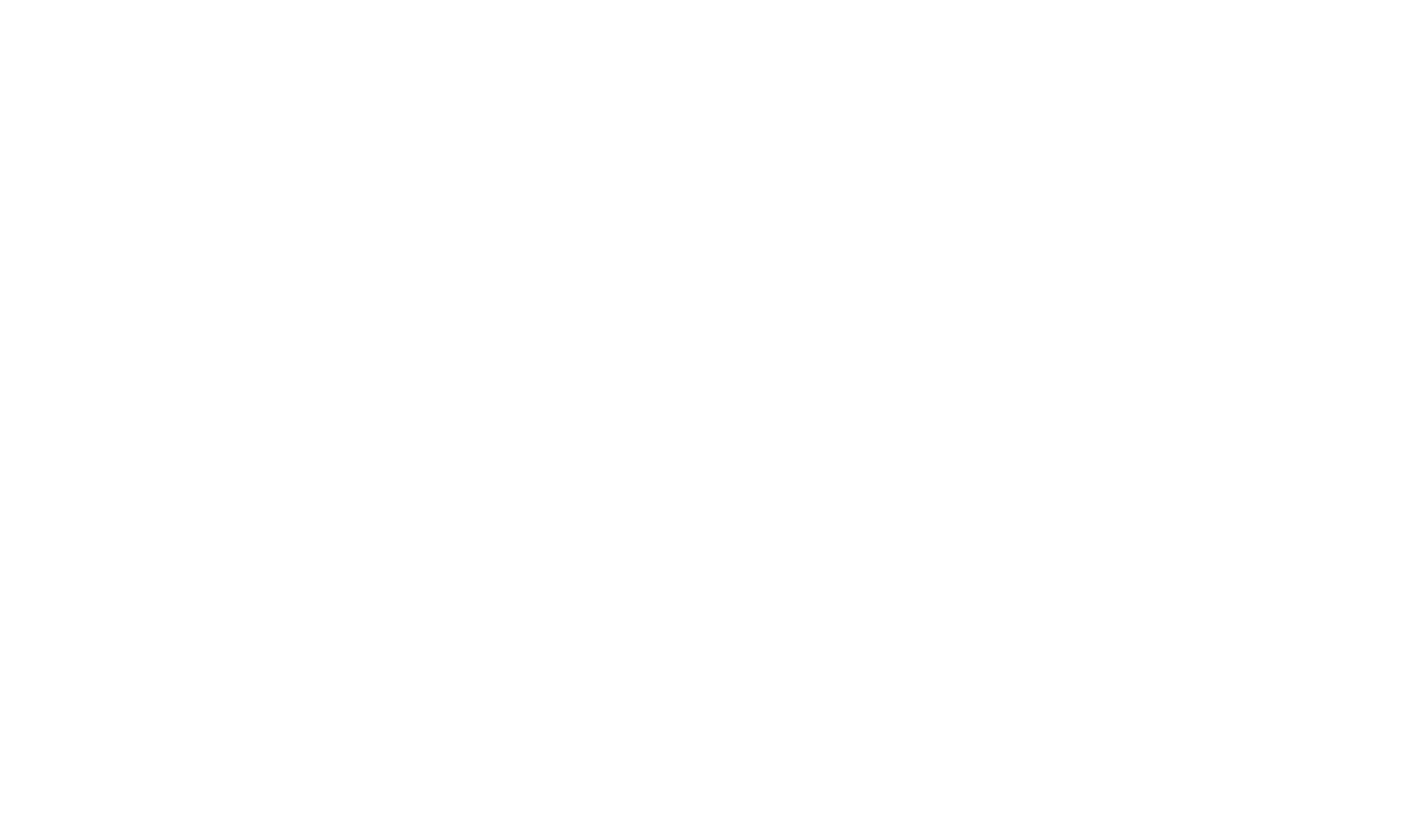

Product Drawing

Technical Data

H100
Model	Dimensions (mm)			Set of two lateral panels	Base plate
Code	L	H	P	Code	Code
ZM61	600	100	400	LM 41	RM 64
	600	100	500	LM 51	RM 65
	600	100	600	LM 61	RM 66
ZM81	800	100	400	LM 41	RM 84
	800	100	500	LM 51	RM 85
	800	100	600	LM 61	RM 86
ZM101	1000	100	400	LM 41	RM 104
	1000	100	500	LM 51	RM 105
	1000	100	600	LM 61	RM 106
ZM121	1200	100	400	LM 41	RM 124
	1200	100	500	LM 51	RM 125
	1200	100	600	LM 61	RM 126
ZM161	1600	100	400	LM 41	RM 164
	1600	100	500	LM 51	RM 165
	1600	100	600	LM 61	RM 166

H100
Model	Dimensions (mm)			Set of two lateral panels	Base plate
Code	L	H	P	Code	Code
ZM62	600	200	400	LM 42	RM 64
	600	200	500	LM 52	RM 65
	600	200	600	LM 62	RM 66
ZM82	800	200	400	LM 42	RM 84
	800	200	500	LM 52	RM 85
	800	200	600	LM 62	RM 86
ZM102	1000	200	400	LM 42	RM 104
	1000	200	500	LM 52	RM 105
	1000	200	600	LM 62	RM 106
ZM122	1200	200	400	LM 42	RM 124
	1200	200	500	LM 52	RM 125
	1200	200	600	LM 62	RM 126
ZM162	1600	200	400	LM 42	RM 164
	1600	200	500	LM 52	RM 165
	1600	200	600	LM 62	RM 166
