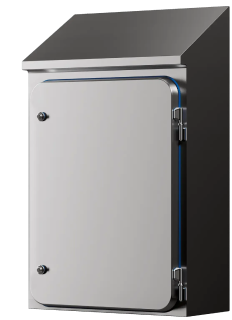

HE Series

Technical Data

Drawing

Certifications

Accessories

Standard Specifications

  • Made of Stainless Steel Aisi 304 (EN 1.4301) Scotch-Brite finish
  • Blind sash thickness 2mm, perimeter edge tilted 10°.
  • Patented and EHEDG-certified external hinges
  • Sash opening 180° and capacity up to 45Kg
  • Closure through EHEDG-certified boxes
  • Blue silicone gasket complying with FDA guidelines
  • 30° sloping sky covering the sash
  • FeZn inner plate 2.5mm thick
  • Certified 3A

On Request

  • Stainless Steel Aisi 316L (EN 1.4404)
  • M6 blind bushings on the back
  • Customizations to design
Request Documentation and Quotations

Standard Certifications

Product Drawing

×

Technical Data

Art.
Dimensions (mm)
Door
Mounting Plate Dimensions (mm)
Hygienic Locks & Hinges
Back Inserts M6
Distance rear inserts M6 (mm)
Useful Drilling Space (mm)
CodeLHH1WNr.L2H2Nr.Nr.L3H3L4H4
HE 454525450450642250135544524330430350360
HE 455025450500692250135549524330480350430
HE 456025450600792250135559524330580350530
HE 505025450500692250135549524330480350430
HE 507025500700892250140569524380680400630
HE 606025600600792250150559524480580500530
HE 607530600750971300150574524480730500680
HE 6080306008001021300150579524480780500730
HE 601003060010001221300150599526480980500930
