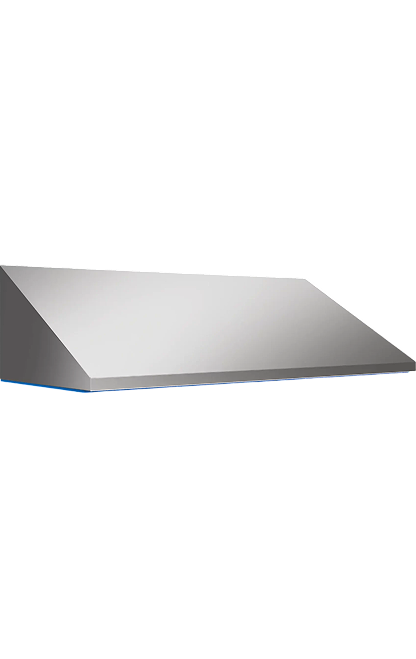

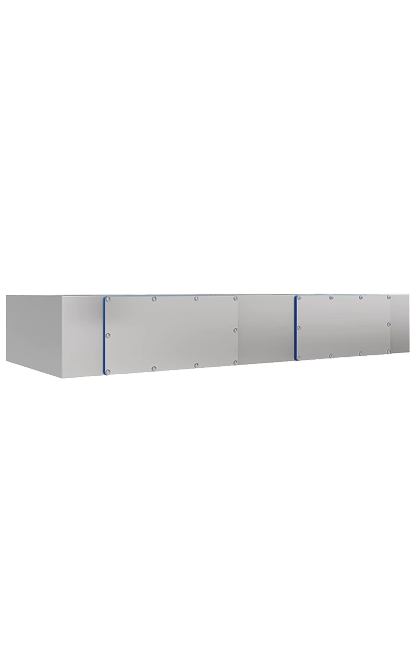

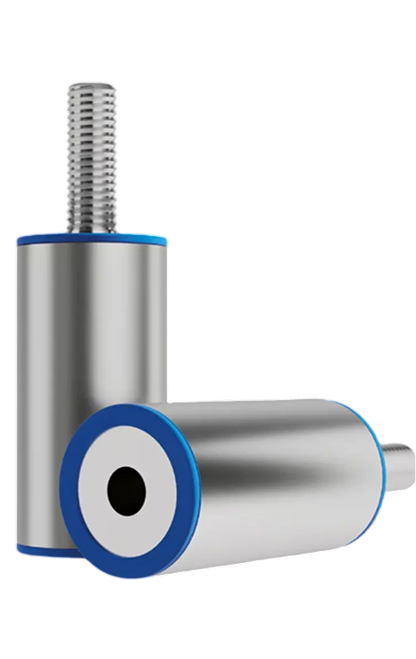

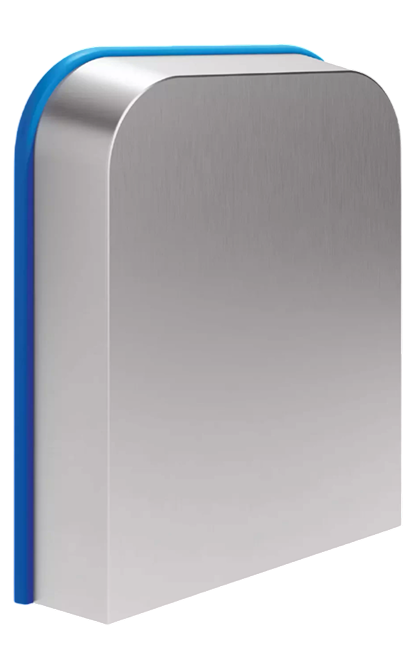

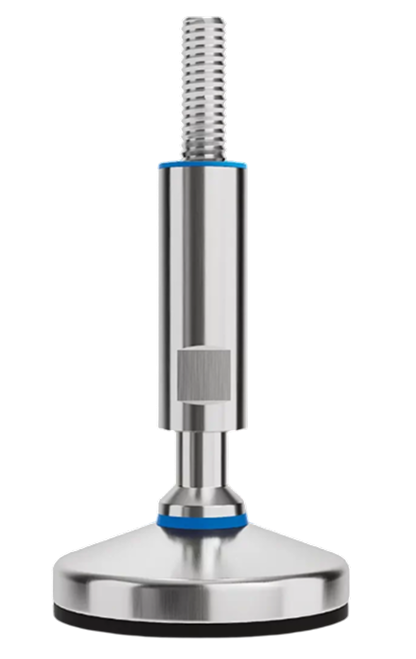

Accessories
Art. | Dimensions (mm) | Door | Mounting Plate Dimensions (mm) | Hygienic Locks & Hinges | Back Inserts M6 | Distance rear inserts M6 (mm) | Useful Drilling Space (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | L | H | H1 | W | Nr. | L2 | H2 | Nr. | Nr. | L3 | H3 | L4 | H4 |
| HE 454525 | 450 | 450 | 642 | 250 | 1 | 355 | 445 | 2 | 4 | 330 | 430 | 350 | 360 |
| HE 455025 | 450 | 500 | 692 | 250 | 1 | 355 | 495 | 2 | 4 | 330 | 480 | 350 | 430 |
| HE 456025 | 450 | 600 | 792 | 250 | 1 | 355 | 595 | 2 | 4 | 330 | 580 | 350 | 530 |
| HE 505025 | 450 | 500 | 692 | 250 | 1 | 355 | 495 | 2 | 4 | 330 | 480 | 350 | 430 |
| HE 507025 | 500 | 700 | 892 | 250 | 1 | 405 | 695 | 2 | 4 | 380 | 680 | 400 | 630 |
| HE 606025 | 600 | 600 | 792 | 250 | 1 | 505 | 595 | 2 | 4 | 480 | 580 | 500 | 530 |
| HE 607530 | 600 | 750 | 971 | 300 | 1 | 505 | 745 | 2 | 4 | 480 | 730 | 500 | 680 |
| HE 608030 | 600 | 800 | 1021 | 300 | 1 | 505 | 795 | 2 | 4 | 480 | 780 | 500 | 730 |
| HE 6010030 | 600 | 1000 | 1221 | 300 | 1 | 505 | 995 | 2 | 6 | 480 | 980 | 500 | 930 |
