JBF Serie

Technical Data

Drawing

Certifications

Accessories

Standard Specifications

  • In Stainless steel AISI 304 (EN 1.4301), Scotch-Brite finishing.
  • Screwed cover 1-1.2 mm of thickness, fixed with captive screws.
  • Bi-component polyurethane foam gasket
  • M5 blind nuts on the back to fix the enclosure

On Request Heading

  • In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.
  • Internal mounting plate in galvanized steel, 2,5 mm thick (from model JBF 1616)
  • Design according to customer’s drawing
Request Documentation and Quotations

Standard Certifications

On Request

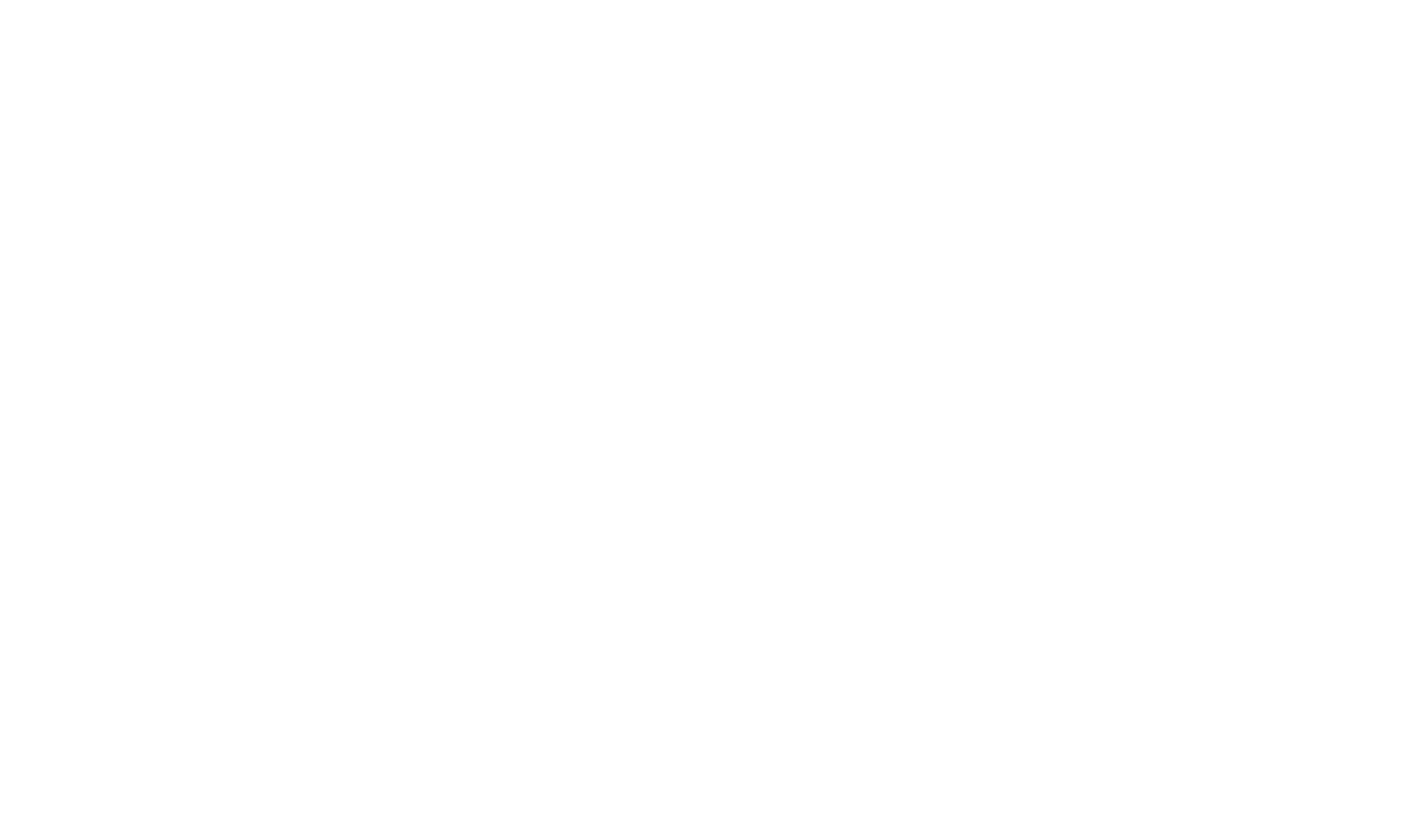

Product Drawing

×

Technical Data

ModelDimensions (mm)N. of holes Ø 22,5Centre distance between button holes (mm)Mounting plateDimensions of the mounting plate (mm)Rear nuts (M5)Distance between rear nuts(mm)Drilling area (mm)
CodeLHP RCodeLH L1H1LH
JB F 101010010090155/  2 705555
JB F 101610016090255/  2 13055115
JB F 102010020090355/  2 17055155
JB F 102810028090455/  2 25055235
JB F 16161601601102x255PSJ16161231234110110115115
JB F 16251602501104x255PSJ16251232134110200115205
JB F 20202002001103x255PSJ20201631634150150155155
JB F 20252002501303x455PSJ25201632134150200155205
JB F 20302003001303x555PSJ25251632634150250155255
JB F 25252502501304x455PSJ20302132134200200205205
JB F 30303003001505x555PSJ30302632634250250255255
