JSF Serie

Technical Data

Drawing

Certifications

Accessories

Standard Specifications

  • In Stainless steel AISI 304 (EN 1.4301), Scotch-Brite finishing.
  • Screwed cover 1 mm of thickness, fixed with screws.
  • Uréthane foam
  • M5 blind nuts on the back to fix the enclosure

On Request Heading

  • In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.
  • Internal mounting plate in galvanized steel, 2,5 mm thick (mod. JSF 1515)
  • Design according to customer’s drawing
Request Documentation and Quotations

Standard Certifications

On Request

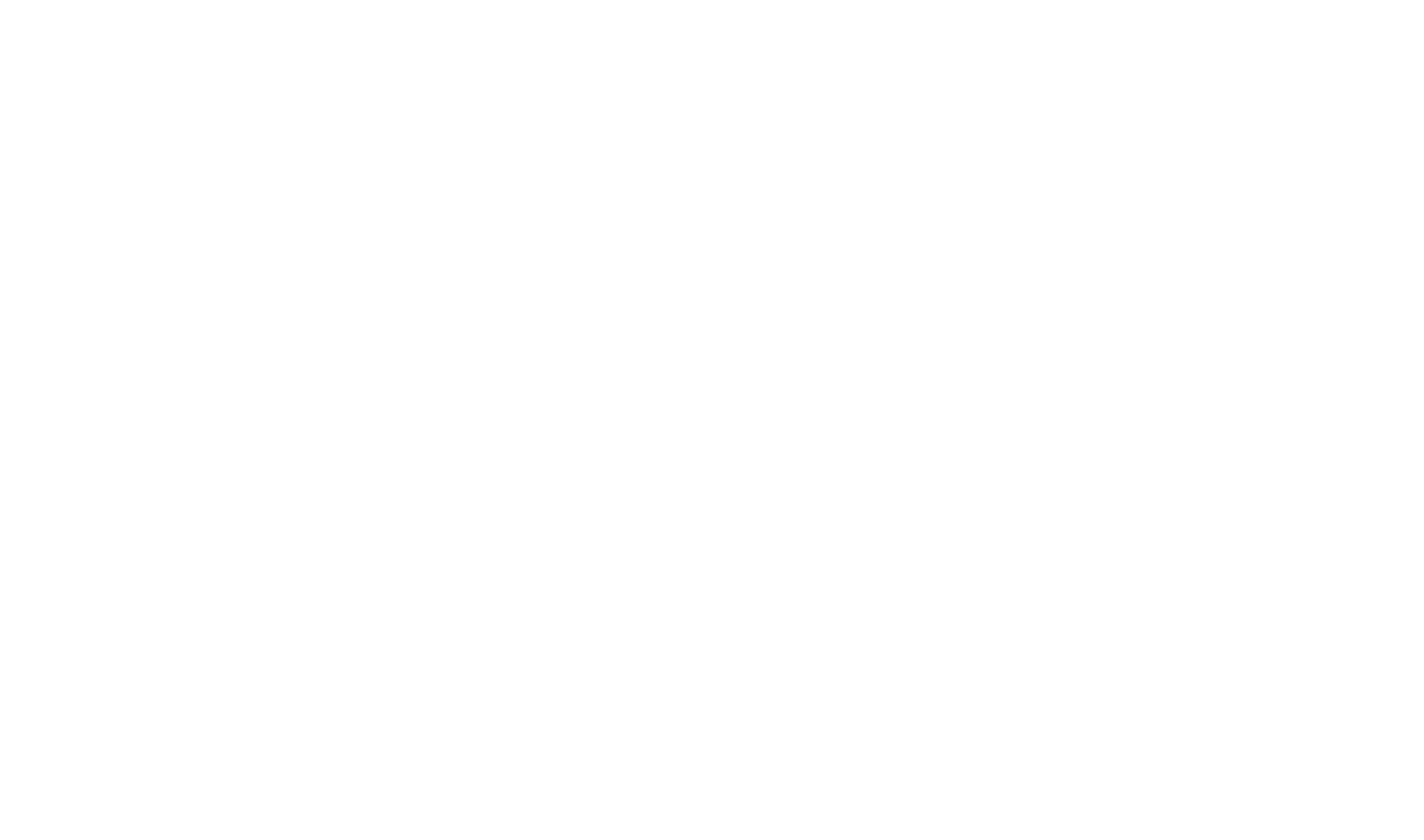

Product Drawing

×

Technical Data

ModelDimensions (mm)Inner plateDimensions mounting plate (mm)Rear nuts (M5)Centre distance rear nuts (mm)
CodeLHP LH L1H1
JS D 88858590/  2 55
JS D 8158515090/  2 120
JS D 8208520090/  2 170
JS D 151515015090PA15151201204100100
