CPK Serie

Technical Data

Drawing

Certifications

Accessories

Standard Specifications

  • In Stainless steel AISI 304 (EN 1.4301), 1.5mm thickness, Scotch-Brite finishing.
  • Stainless steel internal hinges, allowing the opening up to 110°.
  • Hinged upper reading desk inclinated with opening towards the top thanks to gas springs
  • Hinged bottom door
  • Cast steel hinges
  • Screwed rear door
  • Bi-component polyurethane foam gasket
  • Flangia standard?
  • Internal mounting plate in galvanized steel, 2.5 mm thick.

On Request Heading

  • In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.
  • Design according to customer’s drawing

Standard Certifications

On Request

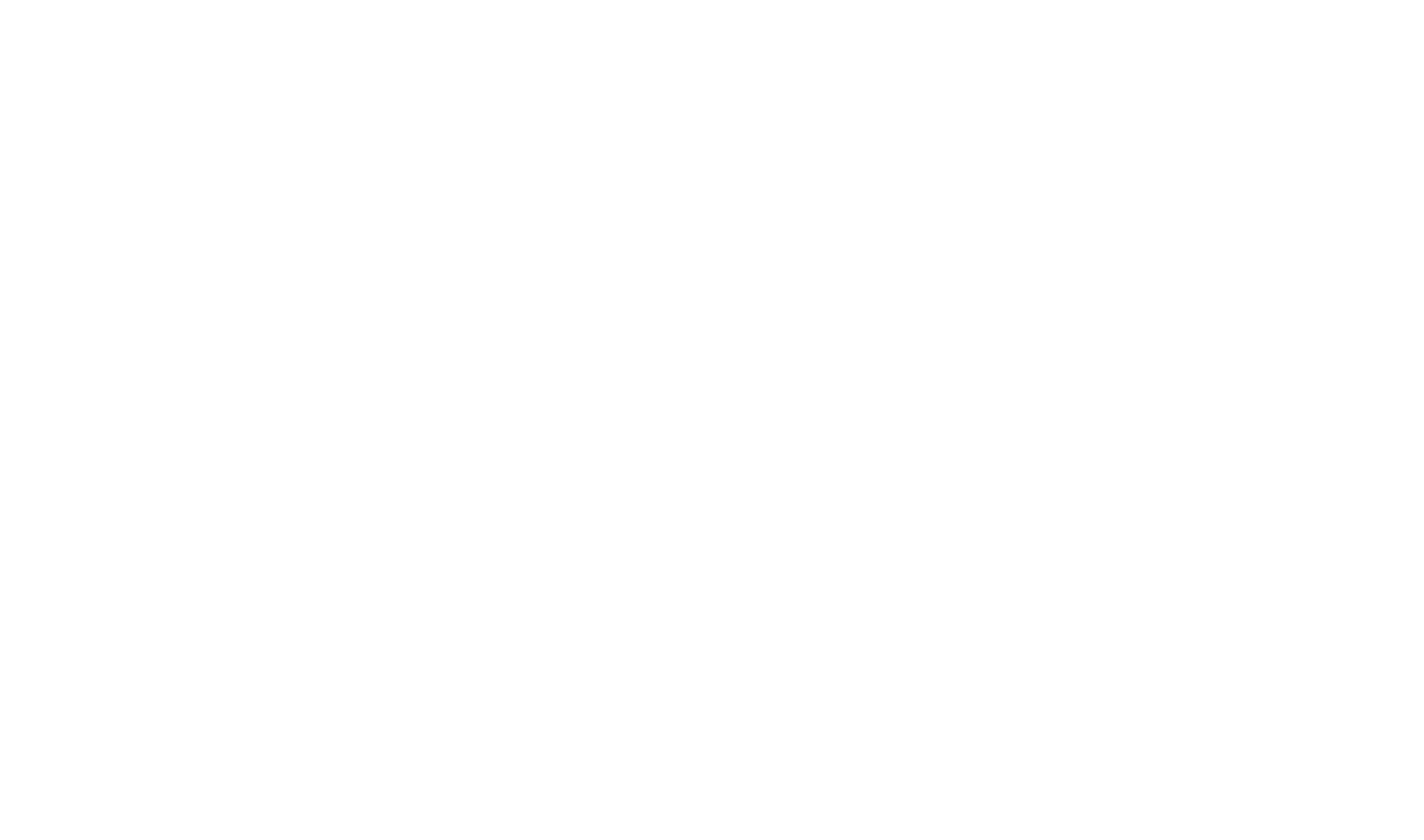

Product Drawing

×

Technical Data

Code
Cylinder lock,
cutout size
Material
No. of pcs.
CFS 50000Without keysPolyamide1
CFC 50333Same key as EK 333Polyamide1
CFC 50405ESame keys as R405EPolyamide1
CFC 50455ESame keys as R455EPolyamide1
CFC 50V…Miscellaneous keysPolyamide1
