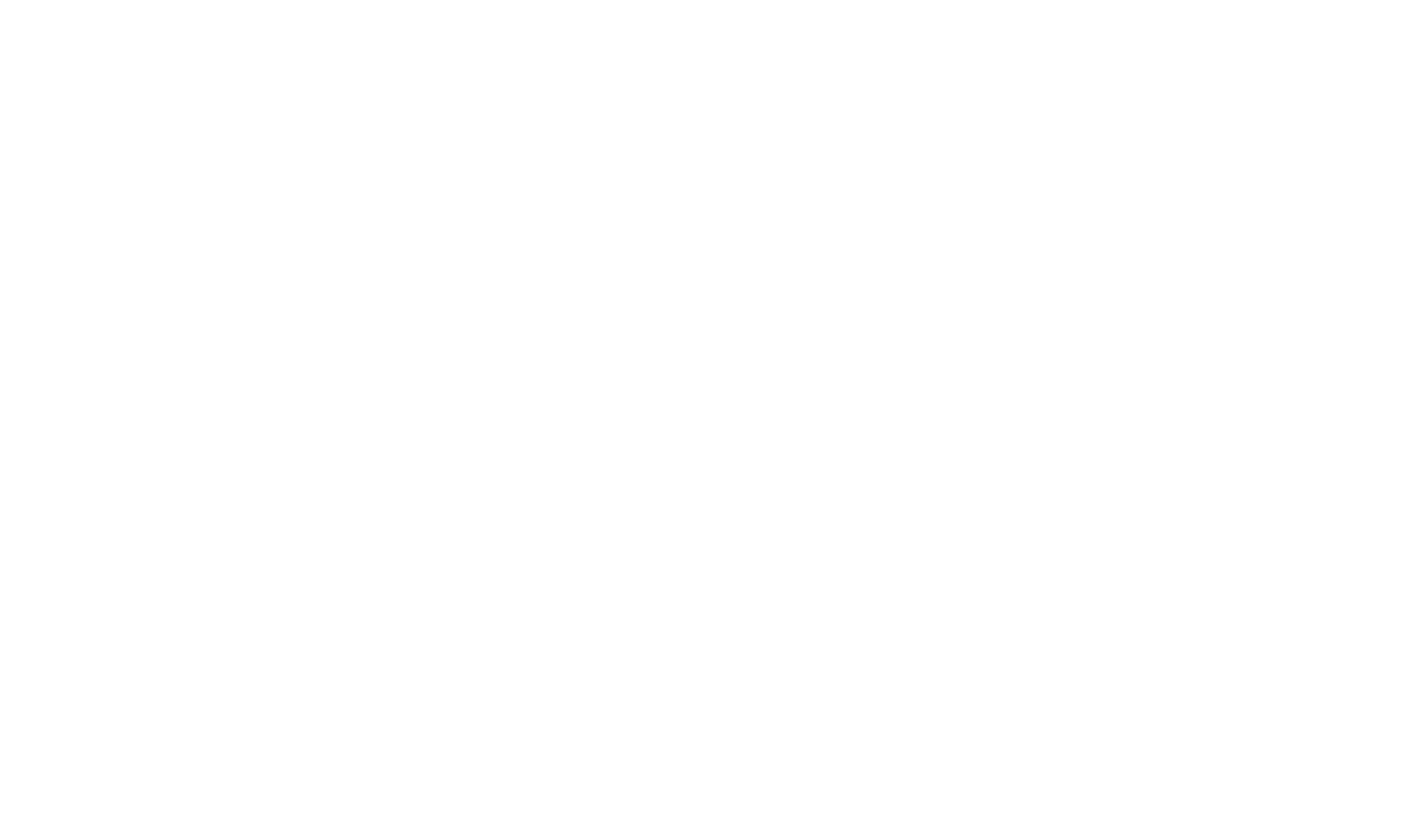

Drawing

Certifications

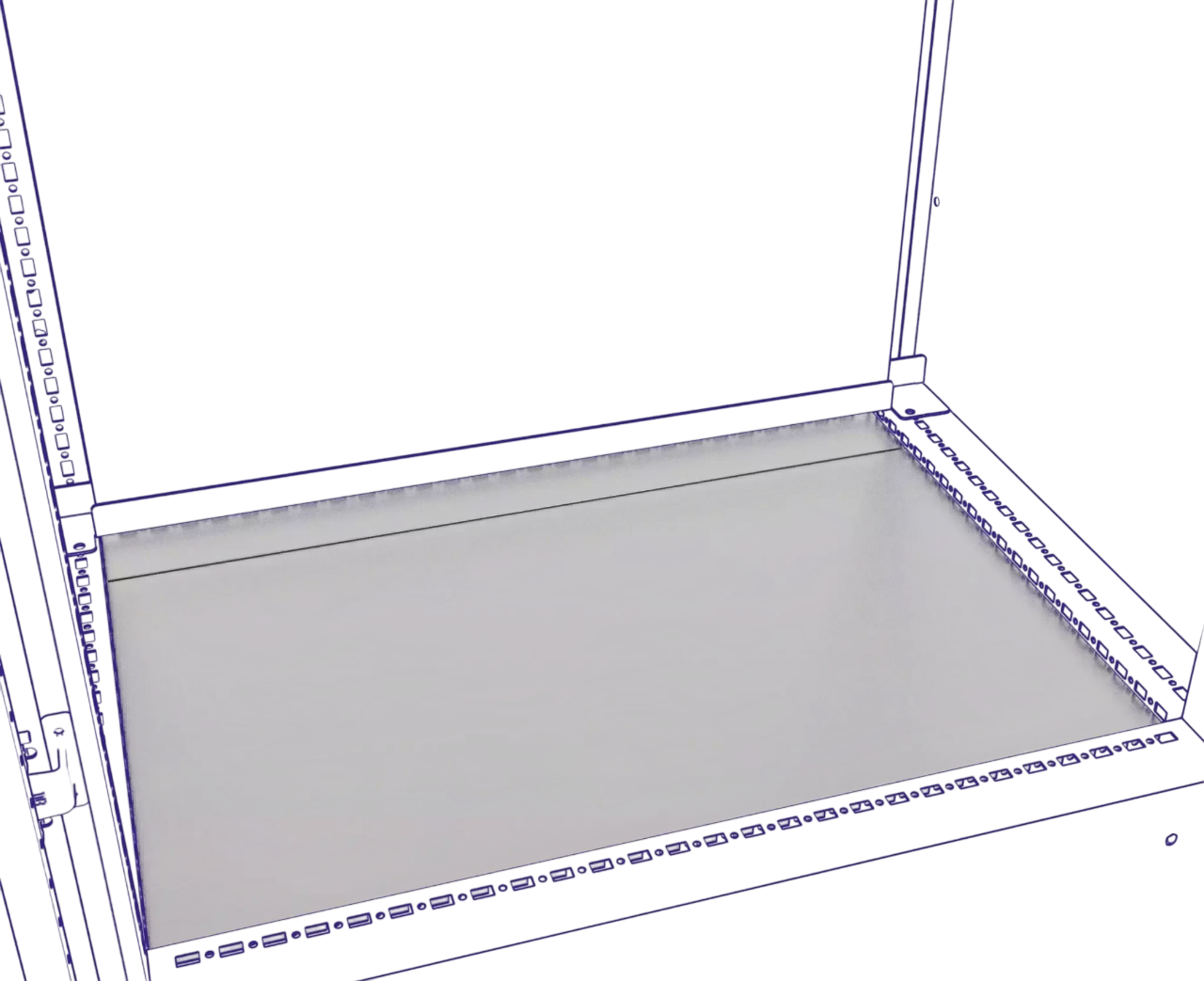

Accessories

CPL Serie

Cabinet with lexan door and storm door

In Stainless steel AISI 304 (EN 1.4301), 1.5mm thickness, Scotch-Brite finishing.
Lexan door, 1.5mm thick, Scotch-Brite finishing complete with pre-drilled internal frame in Fe/Zn
Stainless steel internal door openend up to 110°, Scotch-Brite finishing
Stainless steel internal hinges, allowing the opening up to 110°.
Bi-component polyurethane foam gasket
4 points rod closing system with polyamide handle
Depth adjustable internal mounting plate in Fe/Zn, 2.5 mm thick.
Complete with lifting eye-bolts in Fe/Zn
Entry cable gland mod. CFP or CFG (to be decided in phase of order)

Request Documentation and Quotations

H1800	Model	Cabinet size (mm)			Back-to-back door (mm)			Mounting plate (mm)		Plinth base		Useful Lexan clearance (mm)
	Code	L	H	P	Code	L	H	L	H	Code H100	Code H200	L	H
Single door	CPL 6184	600	1800	400	CKC 618	470	1720	485	1720	ZC 61	ZC 62	375	1600
	CPL 6185	600	1800	500	CKC 618	470	1720	485	1720	ZC 61	ZC 62	375	1600
	CPL 8184	800	1800	400	CKC 818	670	1720	685	1720	ZC 81	ZC 82	575	1600
	CPL 8185	800	1800	500	CKC 818	670	1720	685	1720	ZC 81	ZC 82	575	1600
	CPL 10184	1000	1800	400	CKC 1018	870	1720	885	1720	ZC 101	ZC 102	775	1600
	CPL 10185	1000	1800	500	CKC 1018	870	1720	885	1720	ZC 101	ZC 102	775	1600

H1800	Model	Cabinet size (mm)			Back-to-back door (mm)			Mounting plate (mm)		Plinth base		Useful Lexan clearance (mm)
	Code	L	H	P	Code	L	H	L	H	Code H100	Code H200	L	H
Single door	CPL 6204	600	2000	400	CKC 620	470	1920	485	1920	ZC 61	ZC 62	375	1800
	CPL 6205	600	2000	500	CKC 620	470	1920	485	1920	ZC 61	ZC 62	375	1800
	CPL 8204	800	2000	400	CKC 820	670	1920	685	1920	ZC 81	ZC 82	575	1800
	CPL 8205	800	2000	500	CKC 820	670	1920	685	1920	ZC 81	ZC 82	575	1800
	CPL 10204	1000	2000	400	CKC 1020	870	1920	885	1920	ZC 101	ZC 102	775	1800
	CPL 10205	1000	2000	500	CKC 1020	870	1920	885	1920	ZC 101	ZC 102	775	1800
