CPKM Serie

Console with reading desk and upper part

In Stainless steel AISI 304 (EN 1.4301), 1.5mm thickness, Scotch-Brite finishing.
Stainless steel internal hinges, allowing the opening up to 110°.
Inclinated and hinged upper part with the opening towards the top thanks to gas springs.
Hinged central reading desk inclinated with opening towards the top thanks to gas springs
Hinged bottom door
Cast steel hinges
Screwed rear door
Bi-component polyurethane foam gasket
Flangia standard?
Internal mounting plate in galvanized steel, 2.5 mm thick.

Request Documentation and Quotations

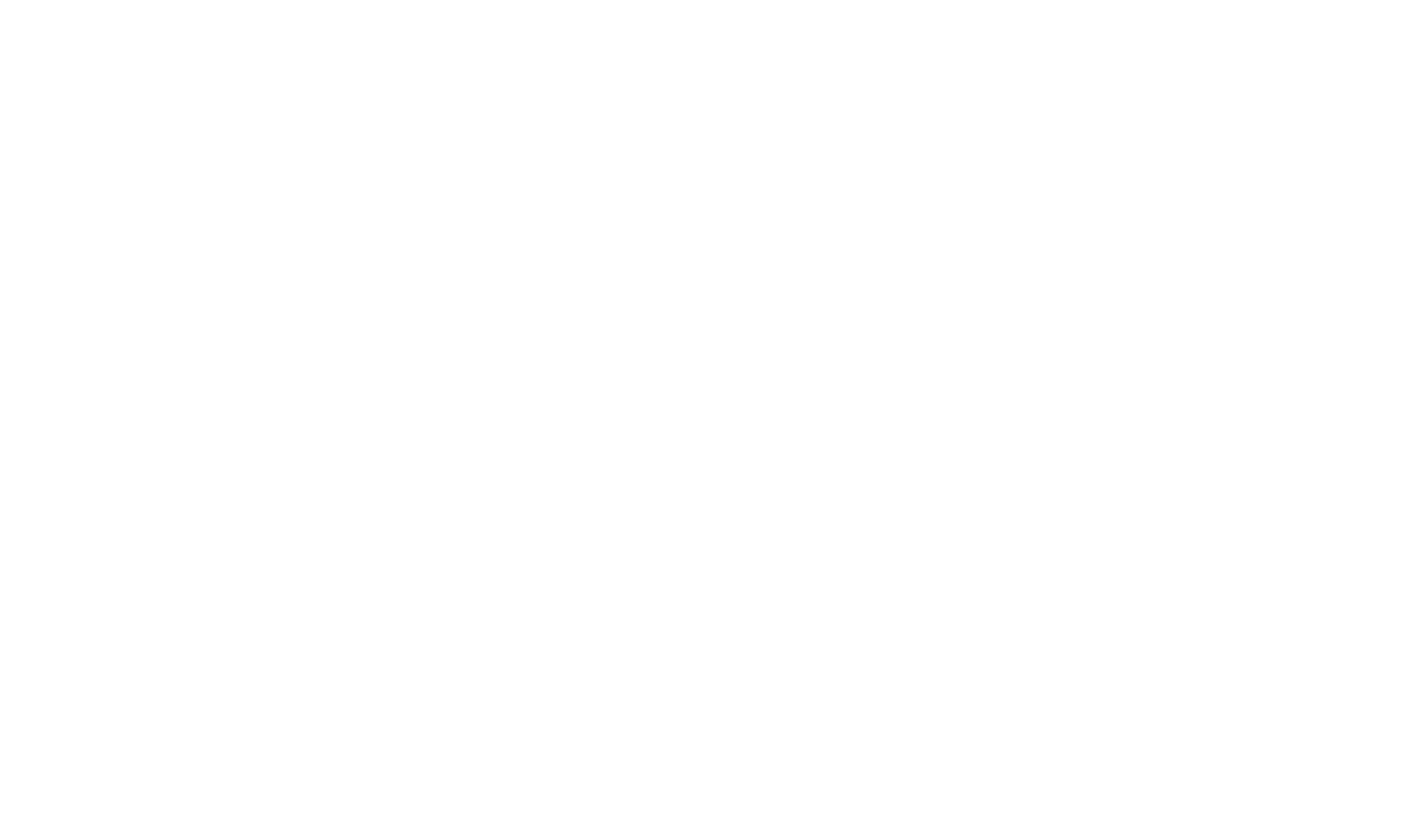

H1400	Cabinet dimensions (mm)			Cable entry plate	Mounting Plate
Code	L	H	P	N°	L1	H1
CPKM 81495	800	1400	950	2	685	690
CPKM 101495	1000	1400	950	2	885	690
CPKM 121495	1200	1400	950	2	1085	690
CPKM 141495	1400	1400	950	2	1285	690
CPKM 161495	1600	1400	950	4	1485	690
CPKM 181495	1800	1400	950	4	1685	690
CPKM 201495	2000	1400	950	4	1885	690
