EQH Series

Boxes with 30° sloping roof

In Stainless steel AISI 304 (EN 1.4301), Scotch- Brite finishing
Coat thickness 1.2-1.5mm depending on size
30° sloping roof
Reversible hinged blind door with 135° opening, thickness 1.2-1.5mm depending on size
Cast stainless steel hinges
Two-component polyurethane foam gasket
M6 blind bushings on the back
FeZn inner plate 2.5mm thick

Request Documentation and Quotations

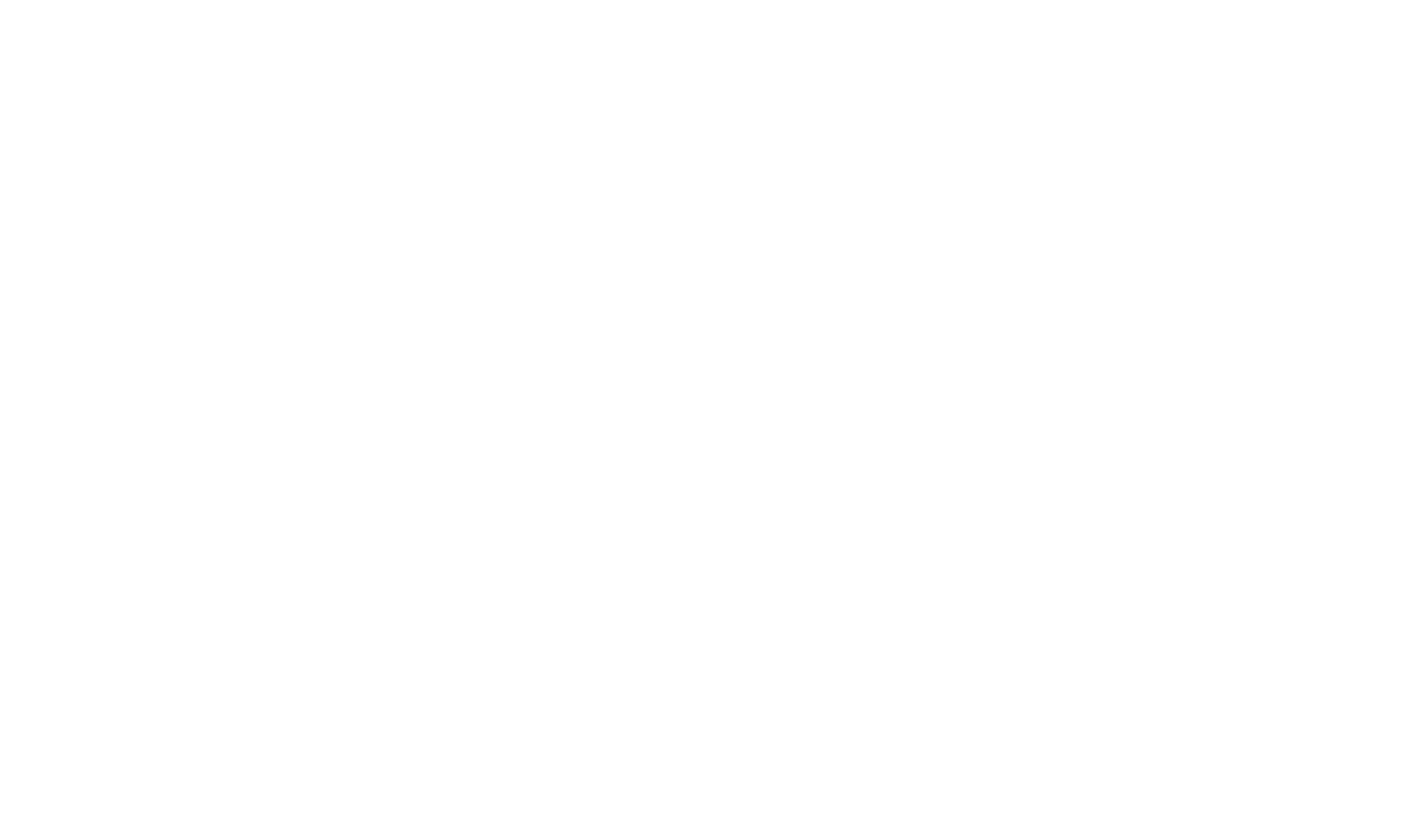

	Model	Dimensions (mm)	Dimensions of the mounting plate (mm)	Number of rear M6 nuts	Distance between rear M6 nuts (mm)	Drilling area on the door (mm)
	Code	L	H	H3	P	L	H		L1	H1	L	H
Single door	EQH 303020	300	300	450	200	255	245	4	230	230	230	230
	EQH 384520	380	450	600	200	335	395	4	310	380	310	380
	EQH 386020	380	600	750	200	335	545	4	310	530	310	530
	EQH 456025	450	600	779	250	405	445	4	380	430	380	430
	EQH 507025	500	700	879	250	455	645	4	430	630	430	630
	EQH 603825	600	380	559	250	555	325	4	530	310	530	310
	EQH 604525	600	450	629	250	555	395	4	530	380	530	380
	EQH 606025	600	600	779	250	555	545	4	530	530	530	530
	EQH 607530	600	750	958	300	555	695	4	530	680	530	680
	EQH 808030	800	800	1008	300	755	745	4	730	730	730	730
	EQH 8010030	800	1000	1208	300	755	945	6	730	465	730	930
	EQH 8012030	800	1200	1408	300	755	1145	6	730	565	730	1130
