EQLC Series

Case with lexan door and counter door

“In Stainless Steel Aisi 304 (EN 1.4301) Scotch-Brite finish.
Coat thickness 1.2-1.5mm depending on size
Reversible transparent lexan ncernierata door with 135° opening, stainless steel thickness 1.2-1.5mm depending on size
Cast stainless steel hinges
Two-component polyurethane foam gasket
Reversible interior counter door
M6 blind bushings on the back
FeZn inner plate sp.2.5mm”

Request Documentation and Quotations

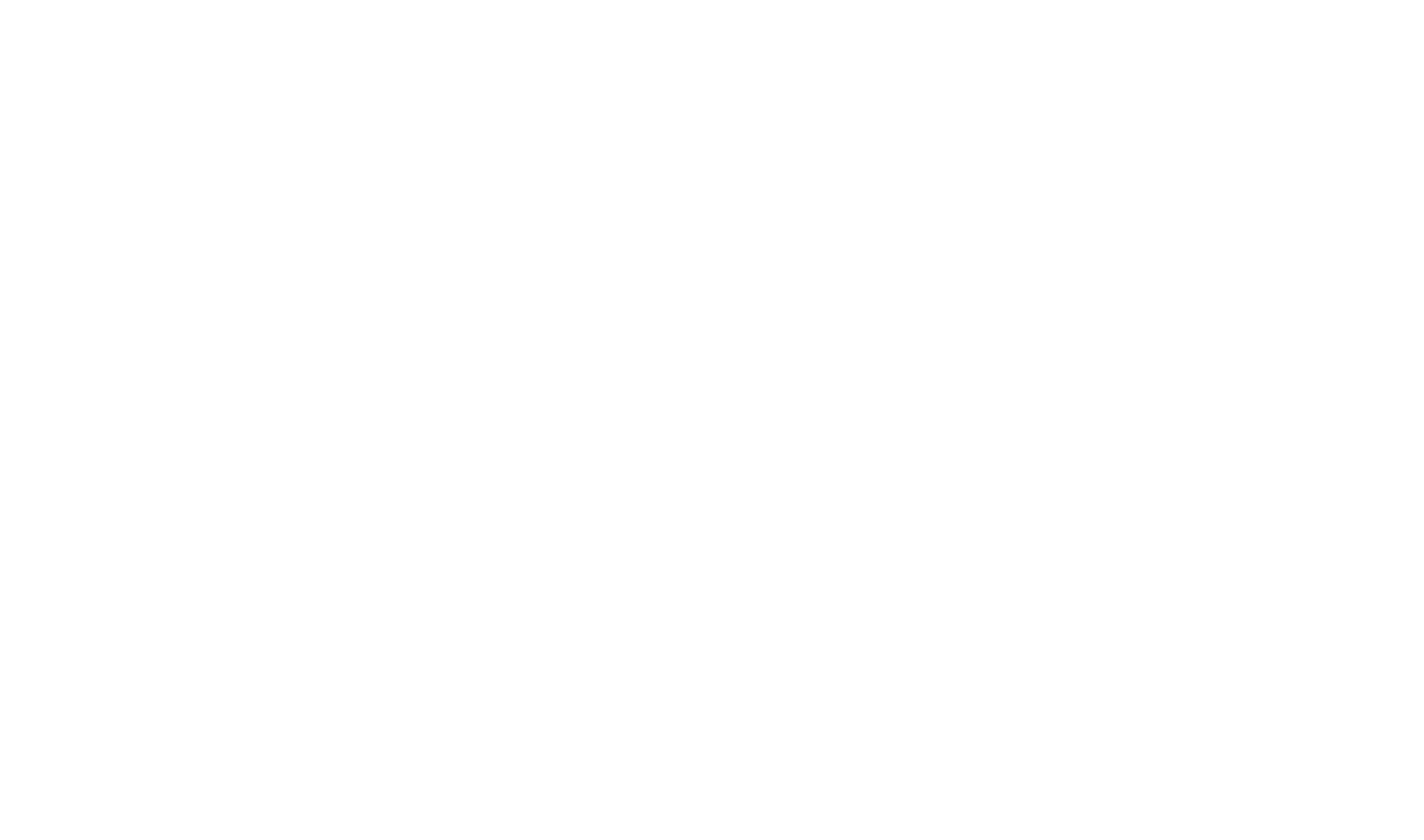

	Model	Dimensions (mm)	Dimensions of the mounting plate (mm)	Number of rear M6 nuts	Distance between rear M6 nuts (mm)	Lexan clearance (mm)
	Code	L	H	P	L	H		L1	H1	L	H
Single door	EQLC 354020	350	400	200	305	345	4	280	330	238	288
	EQLC 403520	400	350	200	355	295	4	330	280	288	238
	EQLC 405020	400	500	200	355	445	4	330	430	288	388
	EQLC 405025	400	500	250	355	445	4	330	430	288	388
	EQLC 454525	450	450	250	405	395	4	380	380	338	338
	EQLC 456025	450	600	250	405	545	4	380	530	338	488
	EQLC 607525	600	750	250	555	695	4	530	680	488	638
	EQLC 609030	600	900	300	555	845	4	530	830	488	788
	EQLC 7510030	750	1000	300	705	945	6	680	465	638	888
	EQLC 8010030	800	1000	300	755	945	6	730	465	688	888
	EQLC 8012030	800	1200	300	755	1145	6	730	565	688	1088
