EQ AF Series

Case containment arc flash

Standard Specifications

In Stainless steel AISI 304 (EN 1.4301), Scotch- Brite finishing
Coat thickness 1.5mm
Screwed sash 1.5mm thick
Two-component polyurethane foam gasket
M6 blind bushings
FeZn inner plate 2.5mm thick
Security bracket kit

On Request Heading

In Aisi 316 stainless steel (EN 1.4404) Scotch-Brite finish
Customizations to design

Request Documentation and Quotations

Standard Certifications

On Request

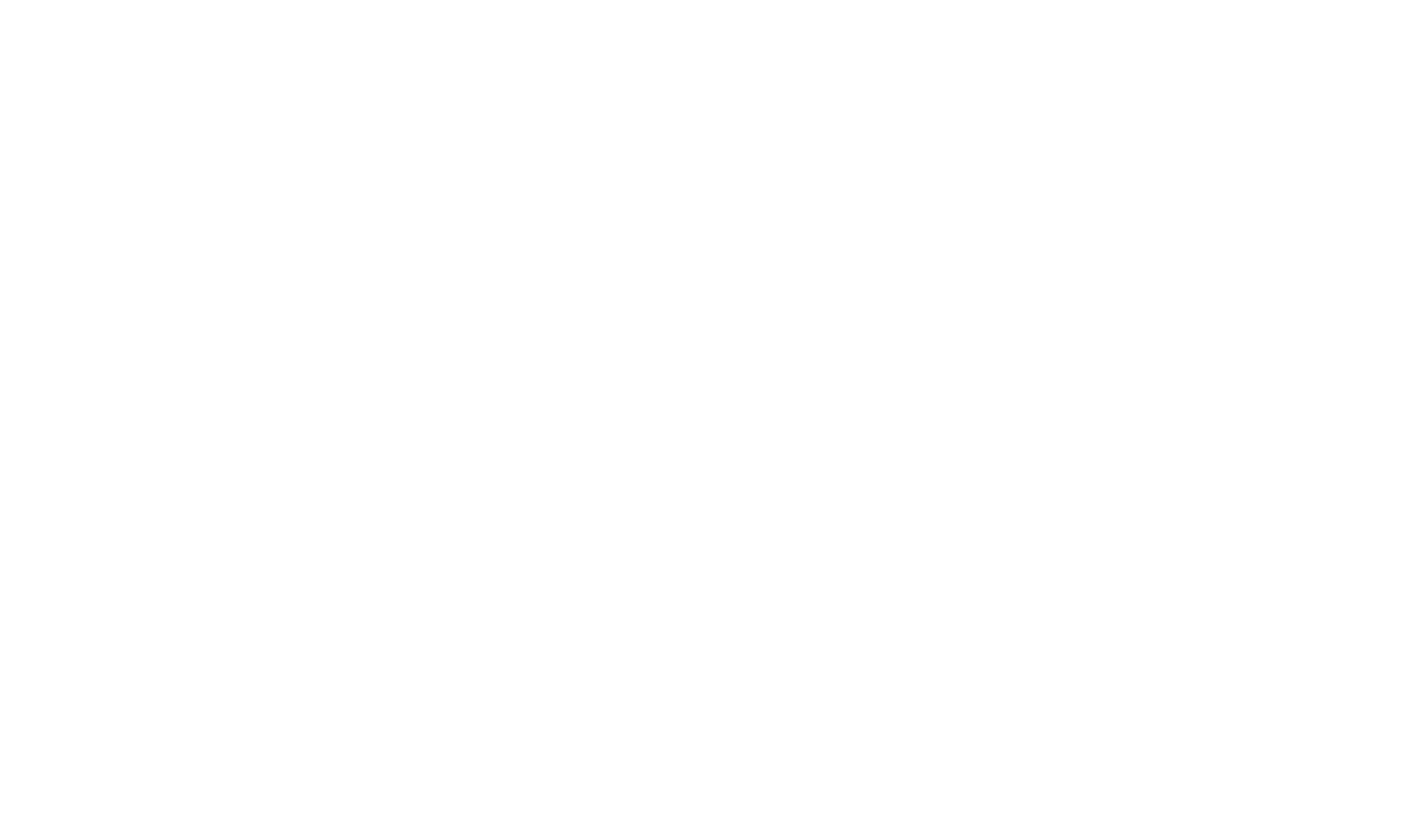

Product Drawing

Technical Data

Model	Dimensions (mm)
Code	L	H	P
EQ AF 328020	320	800	200
