MCD Serie

Modular power-distribution cabinet

Standard Specifications

In Stainless steel AISI 304 (EN 1.4301), Scotch-Brite finishing.
Lexan door, 1.5mm thickness, Scotch-Brite finishingc omplete with pre-drilled internal frame in Fe/Zn
Kit of stainless steel AISI 304 (EN 1.4301) panels for modular switches and fitted with depth adjustable brackets for DIN rails.
Stainless steel internal hinges, allowing the opening up to 110°.
Removable rear panel, side panel, cover and bottom, 1.5mm thickness, Scotch Brite finishing.
Bi-component polyurethane foam gasket
4 points rod closing system with polyamide handle
Internal mounting plate in Fe/Zn 2.5 mm thick.
Complete with lifting eye-bolts in Fe/Zn

On Request Heading

In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.
Depth adjustable internal mounting plate in galvanized steel, 2.5 mm thick.
Design according to customer’s drawing

Request Documentation and Quotations

Standard Certifications

On Request

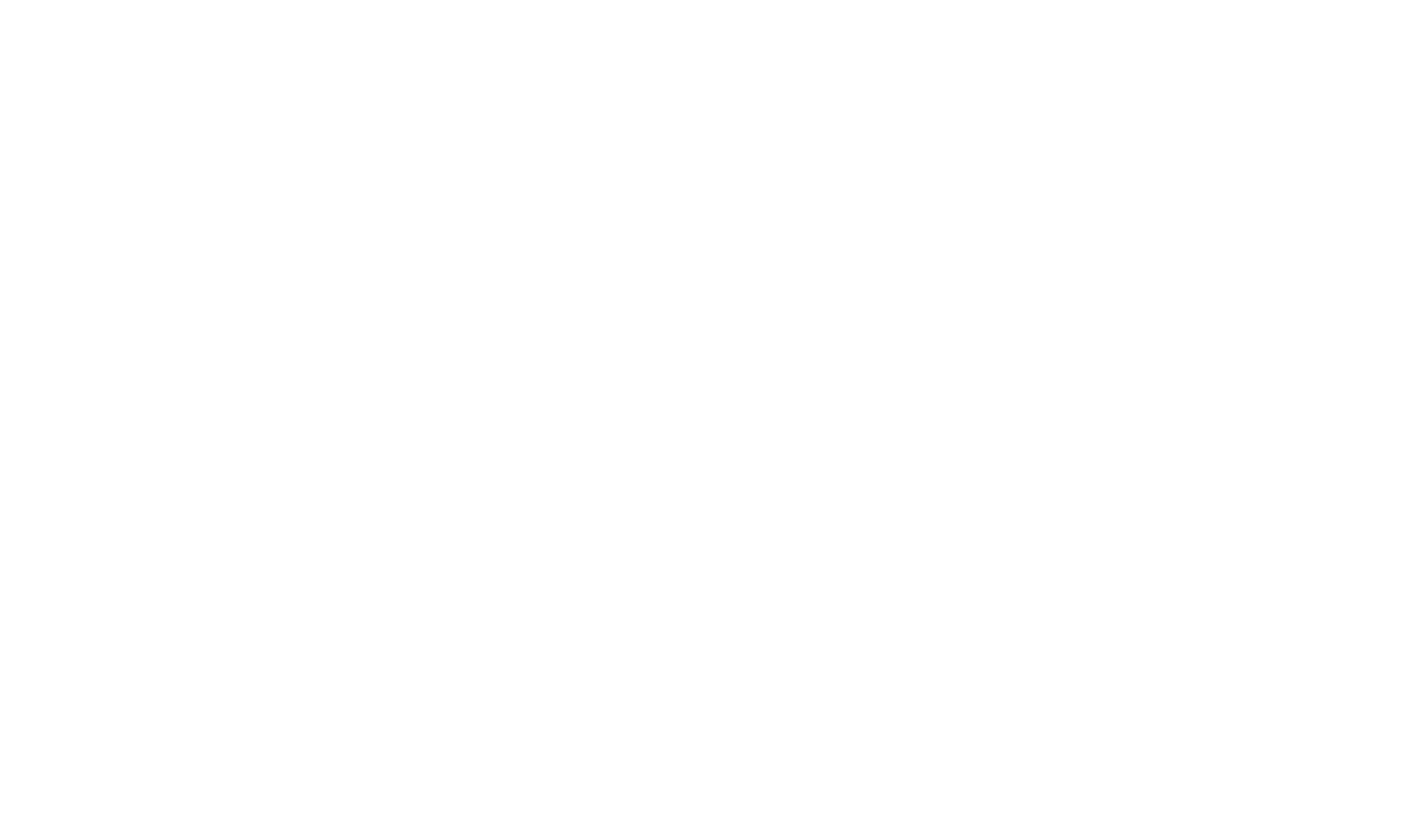

Product Drawing

Technical Data

H1800	Model Lexan door	Cabinet size (mm)			Number of modular panels H200	Modules		H of the terminal connector block (mm)	Plinth base		Side panel
	Code	L	H	P		on each row	total number		H100 Code	H200 Code	Code
Single door
	MCD 6184	600	1800	400	6	24	144	500	ZM 61	ZM 62	WL 41
	MCD 6185	600	1800	500	6	24	144	500	ZM 61	ZM 62	WL 51
	MCD 6186	600	1800	600	6	24	144	500	ZM 61	ZM 62	WL 61
	MCD 8184	800	1800	400	6	34	204	500	ZM 81	ZM 82	WL 41
	MCD 8185	800	1800	500	6	34	204	500	ZM 81	ZM 82	WL 51
	MCD 8186	800	1800	600	6	34	204	500	ZM 81	ZM 82	WL 61
	MCD 10184	1000	1800	400	6	44	264	500	ZM 101	ZM 102	WL 41
	MCD 10185	1000	1800	500	6	44	264	500	ZM 101	ZM 102	WL 51
	MCD 10186	1000	1800	600	6	44	264	500	ZM 101	ZM 102	WL 61

H2000	Model Lexan door	Cabinet size (mm)			Number of modular panels H200	Modules		H of the terminal connector block (mm)	Plinth base		Side panel
	Code	L	H	P		on each row	total number		H100 Code	H200 Code	Code
Single door
	MCD 6204	600	2000	400	7	24	144	500	ZM 61	ZM 62	WL 42
	MCD 6205	600	2000	500	7	24	144	500	ZM 61	ZM 62	WL 52
	MCD 6206	600	2000	600	7	24	144	500	ZM 61	ZM 62	WL 62
	MCD 8204	800	2000	400	7	34	204	500	ZM 81	ZM 82	WL 42
	MCD 8205	800	2000	500	7	34	204	500	ZM 81	ZM 82	WL 52
	MCD 8206	800	2000	600	7	34	204	500	ZM 81	ZM 82	WL 62
	MCD 10204	1000	2000	400	7	44	264	500	ZM 101	ZM 102	WL 42
	MCD 10205	1000	2000	500	7	44	264	500	ZM 101	ZM 102	WL 52
	MCD 10206	1000	2000	600	7	44	264	500	ZM 101	ZM 102	WL 62

H2000	Model Lexan door	Cabinet size (mm)			Number of modular panels H200	Modules		H of the terminal connector block (mm)	Plinth base		Side panel
	Code	L	H	P		on each row	total number		H100 Code	H200 Code	Code
Single door
	MCD 6204	600	2000	400	7	24	144	500	ZM 61	ZM 62	WL 42
	MCD 6205	600	2000	500	7	24	144	500	ZM 61	ZM 62	WL 52
	MCD 6206	600	2000	600	7	24	144	500	ZM 61	ZM 62	WL 62
	MCD 8204	800	2000	400	7	34	204	500	ZM 81	ZM 82	WL 42
	MCD 8205	800	2000	500	7	34	204	500	ZM 81	ZM 82	WL 52
	MCD 8206	800	2000	600	7	34	204	500	ZM 81	ZM 82	WL 62
	MCD 10204	1000	2000	400	7	44	264	500	ZM 101	ZM 102	WL 42
	MCD 10205	1000	2000	500	7	44	264	500	ZM 101	ZM 102	WL 52
	MCD 10206	1000	2000	600	7	44	264	500	ZM 101	ZM 102	WL 62
