MCL Serie

Modular cabinet with lexan door and counter door

Standard Specifications

In Stainless steel AISI 304 (EN 1.4301), Scotch-Brite finishing.
Lexan door, 1.5mm thickness, Scotch-Brite finishing.
Stainless steel complete with pre-drilled internal frame in Fe/Zn door openend up to 110°, Scotch-Brite finishing
Stainless steel internal hinges, allowing the opening up to 110°.
Removable rear panel, side panel, cover and bottom, 1.5mm thickness, Scotch Brite finishing.
Bi-component polyurethane foam gasket
4 points rod closing system with polyamide handle
Depth adjustable internal mounting plate in galvanized steel, 2.5 mm thick.
Complete with lifting eye-bolts in galvanized steel.
Entry cable gland mod. CFP or CFG (to be decided in phase of order)

On Request Heading

In Stainless steel AISI 316 (EN 1.4404), Scotch-Brite finishing.

Request Documentation and Quotations

Standard Certifications

On Request

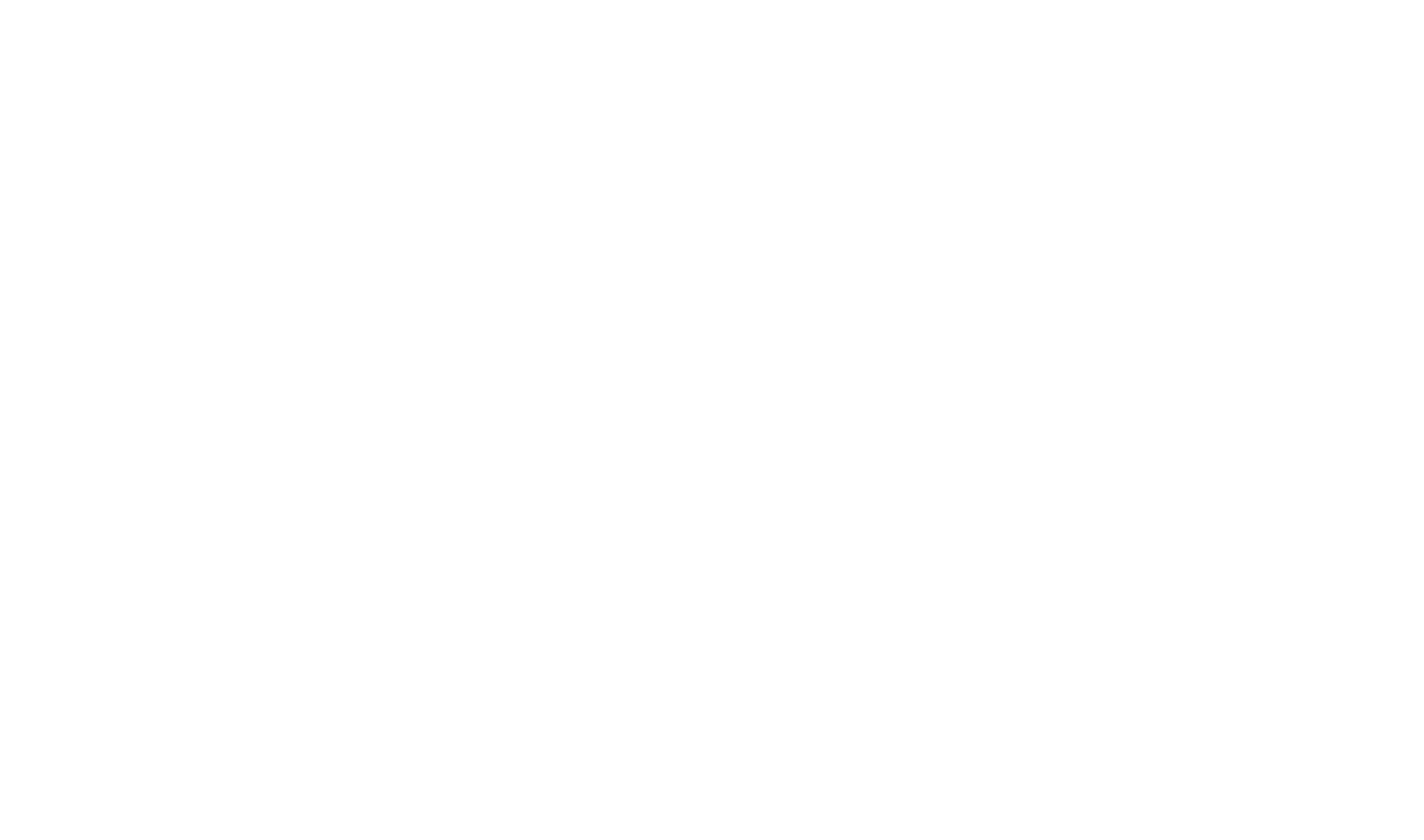

Product Drawing

Technical Data

H1800	Lexan door model	Cabinet size (mm)			Back-to-back door size (mm)			Mounting plate (mm)			Plinth base		Side panel
	Code	L	H	P	Code	L	H	Code	L	H	H100 Code	H200 Code	Code
Single door
	MCL 6184	600	1800	400	MKC 618	470	1720	PS 618	485	1720	ZM 61	ZM 62	WL 41
	MCL 6185	600	1800	500	MKC 618	470	1720	PS 618	485	1720	ZM 61	ZM 62	WL 51
	MCL 6186	600	1800	600	MKC 618	470	1720	PS 618	485	1720	ZM 61	ZM 62	WL 61
	MCL 8184	800	1800	400	MKC 818	670	1720	PS 818	685	1720	ZM 81	ZM 82	WL 41
	MCL 8185	800	1800	500	MKC 818	670	1720	PS 818	685	1720	ZM 81	ZM 82	WL 51
	MCL 8186	800	1800	600	MKC 818	670	1720	PS 818	685	1720	ZM 81	ZM 82	WL 61
	MCL 10184	1000	1800	400	MKC 1018	870	1720	PS 1018	885	1720	ZM 101	ZM 102	WL 41
	MCL 10185	1000	1800	500	MKC 1018	870	1720	PS 1018	885	1720	ZM 101	ZM 102	WL 51
	MCL 10186	1000	1800	600	MKC 1018	870	1720	PS 1018	885	1720	ZM 101	ZM 102	WL 61

H2000	Lexan door odel	Cabinet size (mm)			Back-to-back door size (mm)			Mounting plate (mm)			Plinth base		Side panel
	Code	L	H	P	Code	L	H	Code	L	H	H100 Code	H200 Code	Code
Single door
	MCL 6204	600	2000	400	MKC 620	470	1920	PS 620	485	1920	ZM 61	ZM 62	WL 42
	MCL 6205	600	2000	500	MKC 620	470	1920	PS 620	485	1920	ZM 61	ZM 62	WL 52
	MCL 6206	600	2000	600	MKC 620	470	1920	PS 620	485	1920	ZM 61	ZM 62	WL 62
	MCL 8204	800	2000	400	MKC 820	670	1920	PS 820	685	1920	ZM 81	ZM 82	WL 42
	MCL 8205	800	2000	500	MKC 820	670	1920	PS 820	685	1920	ZM 81	ZM 82	WL 52
	MCL 8206	800	2000	600	MKC 820	670	1920	PS 820	685	1920	ZM 81	ZM 82	WL 62
	MCL 10204	1000	2000	400	MKC 1020	870	1920	PS 1020	885	1920	ZM 101	ZM 102	WL 42
	MCL 10205	1000	2000	500	MKC 1020	870	1920	PS 1020	885	1920	ZM 101	ZM 102	WL 52
	MCL 10206	1000	2000	600	MKC 1020	870	1920	PS 1020	885	1920	ZM 101	ZM 102	WL 62
